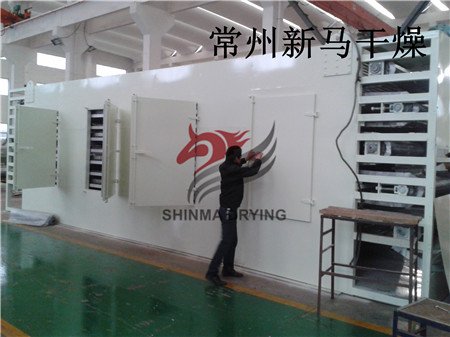

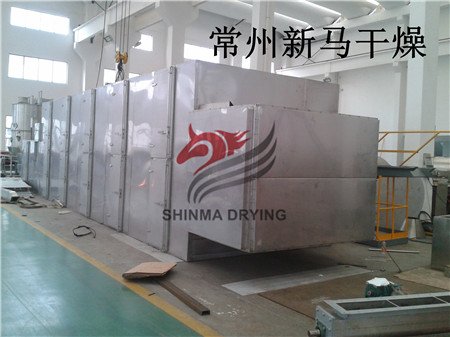

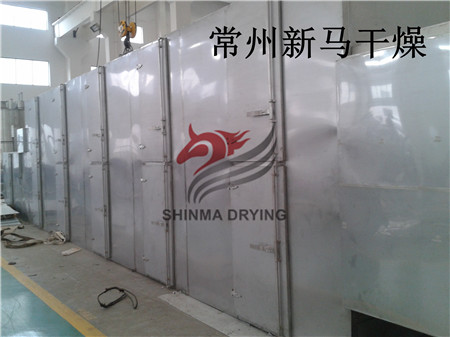

常州新馬干燥DW2.5-24型帶式干燥機

控制系統說明

Control system description:

本控制系統包括：溫度控制系統，風機控制系統，變頻調速系統及網帶清掃系統。

Control system include: temp control system, fans control system, frequency [speed] control system, and belt clean system.

4.1.1設備所用的減速機均為江蘇減速機廠的產品，配套電機為安徽皖南電機有限公司的產品，軸承為哈爾濱軸承廠的產品。

Speed reducer and motors from local market

4.1.2網帶及鏈條的速度為變頻調節約（0.58—0.29）m／min，停留時間35min—70min可調。

Driving speed of Belt and chain is frequency control（0.58—0.29）m／min, seaweeds gel residence time 35min—70min adjustable.

4.1.3設備箱體保溫層厚80mm，材料為硅酸鋁或巖棉。

Thickness of heat insulation is 80mm, material is alumina silicate or rock-wool.

4.1.4碳鋼件的防銹采用氯化橡膠漆。

Antirust paint for C.S parts is chlorinated rubber paint.

4.1.5所有接觸物料的緊固件為不銹鋼。

All fasteners contact with raw material is made of Stainless steel.

4.1.6循環風向及各單元內風的循環為向下式，即加熱后的空氣由引風機吸入，在風機出風口首先預分布再經過孔板均風后，熱風從物料的下面向上（或從物料的上面向下）穿透物料層。

Circulation of air is adown type, that is to say after heating, hot air sucked by draught fans, and after air balance, Hot air penetrate raw material upward or downward.

干燥機材質

Material of Drying machine:

內壁SUS304，外壁SUS304不銹鋼板；

Inside wall SUS304, outside wall SUS304

鏈輪、鏈條碳鋼，鏈條節距203.2；

Chain wheel and chain link C.S, Chain link pitch 203.2;

網帶材料為不銹鋼：開孔率13%,長腰孔1.14X6mm；

Material of belt apron is stainless steel, open area 13%, ell type 1.14X6mm；

風機不銹鋼，風機頂部隔熱層采用硅酸鋁材料保溫；

Fans stainless steel, the heat preservation material on the top of fans alumina silicate;

風機頂部的風管及排風管均為SUS304不銹鋼材料；

Air pipes and air exhaust pipes on the top of fans SUS304.

擋料板材質SUS304，高度120；

        Striker plate SUS304, Height 120.
