帶式干燥機

概述Descriptions：

★該機是穿流連續式干燥設備，用于透氣性較好的片狀，條狀，顆粒狀物

料的干燥，對于脫水蔬菜，中藥飲片等含水量高，而溫度不允許高的物料

尤為合適，該系列干燥機具有干燥速度快，蒸發強度高，產品質量好的優

點。對脫水濾餅狀的膏狀物料，需經造粒或制成棒狀后亦可干燥。

★This machine is a continuous penetrating flow drying equipment

applied .For drying pieces strip and particles state materials with good

ventilation .the machine is suitable for the materials such as

de-watering vegetable, herbal medicine of traditional Chinese

medicine and othersfor which the water contents are high and high

drying temperature is not allowed. The machine owns the advantages,

of fast drying speed, high evaporation capacity and good product

quality. The de-watered filtered cake state paste material should be

made into particles or strips before drying process.

原理principle：

★物料由加料器均勻地鋪在網帶上，網帶一般采用12-60目不銹鋼絲網，

由傳動裝置拖動在干燥機內移動。干燥機由若干單元組成，每一單元熱風

獨立循環，部分尾氣由專門濕風機排出，廢氣由調節閥控制，熱氣由下往

上或由上往下穿過鋪滿物料的網帶完成熱量與質量傳遞的進程，帶走物料

的水份。網帶緩慢移動，運行速度可根據物料溫度自動調節，干燥后的成

品連續落入收料器中。上下循環單元根據用戶需要可靈活配備，單元數量

亦可根據需要選取

★The materials are uniformly distributed on the mesh-belt by the

material feeder. The mesh-belt Generally adopts 12-60 mesh stainless

steel mesh and it is drawn by a transmission device and move inside

the dryer . the dryer is composed of several sections. For each section

the hot air is circulated separately .part of exhausted gas is exhausted

by a special moisture exhaust blower . the waste gas is controlled

by an adjustment valve. The hot air passes thyough the mesh-belt

covered with bring water material away. The mesh-belt moves slowly,

running speed can be freely adjusted according to the material

property. The final products after the drying process will fall into the

material collector continuously . the top and low circulation units can

be freely equipped according to the user requirements .the number of

section might be selected according to the production demands.

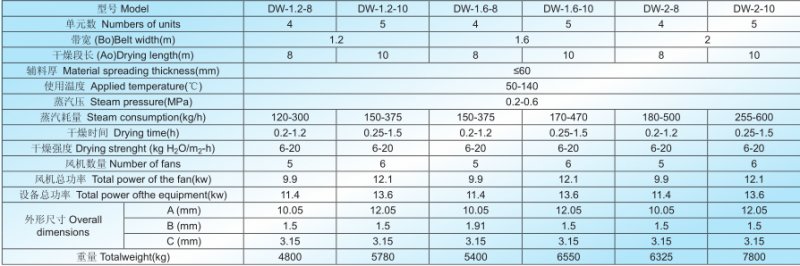

技術參數Technical Data：
