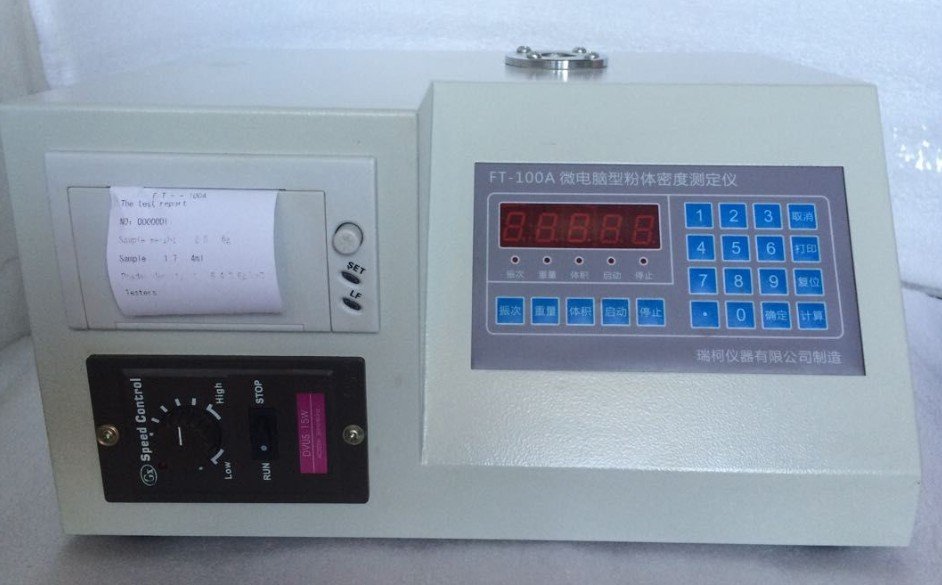

FT-100A振實密度測試儀Tap density tester
一、概述：Overview
設計參考人體工學，操作簡單.參照USP、BP 、EP藥典的規范；GB/T5162-2006；ISO3953:1993；GB/T31057.2-2018.
二、適用范圍：Scope of application
適用于非金屬粉、金屬粉體、制藥、化工、電池、磨料以及科研教學等領域，是粉體行業振實密度測試的理想儀器。
It is suitable for non-metallic powder, metal powder, pharmaceutical, chemical, battery, abrasive and research teaching etc field , which is an ideal instrument for the tap density testing of powder industry
三、 工作原理： Working principle
將粉末量筒固定在機械振動裝置上，振動電機帶動機械振動裝置上下振動，裝有粉末的刻度量筒隨機械振動裝置而發生有節拍的振動，隨著振動次數的增加，量筒里的粉末逐漸振實，振動次數達到設定的次數后，機械振動裝置停止振動，讀出刻度試管的體積，根據密度的定義：質量除以體積、從而求出振實后的粉末密度。
Powder cylinder fixed in the mechanical vibration device, mechanical vibration device vibrate under driven by vibrating motor, the calibration test tubes which containing powder vibrate with the mechanical vibration device, with the increase of vibration frequency, the powder in the measuring cylinder gradually compact by vibration, When vibration frequency reaching setting the number of times, mechanical vibration device will stop the vibration, Read the volume of the calibration test tube, according to the definition of density: mass divided by volume, thus find out the powder density after compaction.
四、各型號及參數描述model and parameter description
功能項目/型號 project/model | FT-100A |
1.測試工位數Test number | 1個 one |
1. 測試數據處理方式 Test data processing method | 帶打印+自動計算 With print + automatic calculation |
量筒（玻璃材質）定質量法使用Measuring | 25ml、50ml、100ml、250ml（選購10ml量筒用于25ml以下樣品測試）. |
2. 密度density | 0-9.9999g/cm3 |
3. 測量模式measurement | 振次Vibration |
4. 振幅 range of vibration | 1-14mm整數可調； Maximum 14mm, integer 1-14mm adjustable; |
5. 振動頻率 vibrational frequency | 0～300 次/分（連續可調）times/ minute. (continuous adjustable)
|
6. 測試方法 | 定質量法（標配）；定體積法（選購不銹鋼組合量筒部件） |
7. 定體積法組合量筒（選購） | 配置不銹鋼量筒25ml；100ml；（或選購10ml量筒用于25ml以下樣品測試）.組合量筒由上套筒和標定體積量筒組成. |
8.參照標準standards | USP、BP 、EP藥典的規范；GB/T5162-2006；ISO3953:1993；GB/T31057.2-2018. |
9.量筒要求 Measuring cylinder requirements | 1.容積為Volume 25±0.5ml 允差為±0.25ml； 2.容積Volume 100±1.0ml，允差為±0. 5ml； 3.容積Volume 10±0.2ml，允差為±0.10ml 配置量筒蓋，在振實過程中防粉體向外飛濺性溢出. |
11．重復性repeatability | 誤差Deviation：≤1% |
12.準確性Accuracy | 誤差Deviation：≤1% |
測試方法的選擇 | 定質量法適用于：不易粘在量筒上的粉體樣品；定體積法適用于：容易粘在量筒上的超細粉體樣品. |
13. 應用領域 Scope of application
| 非金屬粉、金屬粉 、制藥、化工、電池、磨料以及科研教學等粉體顆粒物料 Non-metallic powder, metal powder, pharmaceutical, chemical, battery, abrasive and scientific research teaching and other powder particle materials |
14.電源Power supply | 交流Ac 220V(50Hz/60Hz)、40W |
15.使用環境 Operational environment
| 濕度小于85%，無凝結現象，無煙塵，無機械振動源或電磁干擾源 Humidity is less than 85%, no condensation, no smoke, no mechanical vibration source or electromagnetic interference source |
16.其他選購項目 Buy items | a.3Q驗證文件 b.隔音箱 c.水分儀 d.粉體真密度儀 e.松裝密度儀 a.3Q verification file b. sound box c. moisture meter d. powder true density meter e. bulk density meter |
